Layout No. 6
(6 Compartments)
- 2 slotted partitions
- 2 divider plates 10U
- 1 divider plate 12U

Layout No. 4
(20 Compartments)
- 4 slotted partitions
- 14 divider plates 6U
- 1 divider plate 8U

Layout No. 2
(22 Compartments)
- 2 slotted partitions
- 16 divider plates 10U
- 3 divider plates 12U

Copyright © Stor-Loc. All rights reserved.

Designed by Advanced Computer Specialists, INC.

Stor-Loc

880 N. Washington Ave

Kankakee, IL 60901

815-936-0700

STOR-LOC Cabinet Configuration

Layout No. 3
(20 Compartments)
- 3 slotted partitions
- 16 divider plates 8U

It’s easy to configure your STOR-LOC® Cabinet

Once you have calculated your drawer requirements and selected the cabinet width, determine the proper cabinet height by adding the drawer model numbers until they equal the cabinet model number.

1) Select a cabinet width

STOR-LOC® offers six widths:

Narrow-Wide (NW) 23”

Standard-Wide (SW) 29¼”

Standard-Wide PLUS (SW+) 32½”

Extra-Wide (EW) 43¼”

Extra-Wide PLUS (EW+) 46”

Double-Wide (DW) 58¼”


Standard Drawer Layouts
Our nine most popular drawer layouts shown below. See drawer layout manual MD-4 to choose other great layouts. Also, custom drawer layouts available.

Layout No. 7
(25 Compartments)
- 4 slotted partitions
- 12 divider plates 6U
- 8 divider plates 7U

Layout No. 9
(36 Compartments)
- 5 slotted partitions
- 20 divider plates 5U
- 10 divider plate 6U

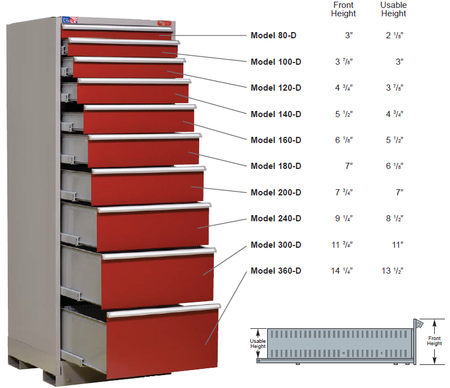

2) Choose drawer heights

Choose the ideal sizes for your application from a range of 10 drawer heights.

Layout No. 5
(12 Compartments)
- 2 slotted partitions
- 6 divider plates 10U
- 3 divider plates 12U


Layout No. 8
(4 Compartments)
- 1 slotted partition
- 2 divider plates 16U

Layout No. 1
(16 Compartments)
- 3 slotted partitions
- 12 divider plates 8U

4) Choose drawer layouts

Specify a corresponding drawer layout for each drawer model from those shown.

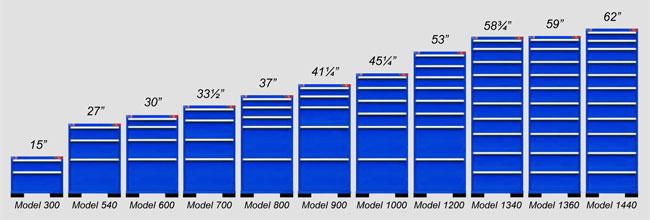

3) Determine cabinet height

Add all drawer model numbers used to find the cabinet model number. STOR-LOC® will make any cabinet model on a 20 point (20mm) increment at no additional charge.
