Layout No. 2
(22 Compartments)
- 2 slotted partitions
- 16 divider plates 10U
- 3 divider plates 12U

Plastic Bins - A Series
Modular design made of tough plastic. Choose from two sizes.
Usable height – 2 inches

Layout No. 8
(4 Compartments)
- 1 slotted partition
- 2 divider plates 16U

Stor-Loc

880 N. Washington Ave

Kankakee, IL 60901

815-936-0700

Layout No. 3
(20 Compartments)
- 3 slotted partitions
- 16 divider plates 8U

Standard Drawer Layouts
Our nine most popular drawer layouts shown below. See drawer layout manual MD-4 to choose other great layouts. Also, custom drawer layouts available.

Grooved plastic trays and small parts containers

STOR-LOC® Drawers are easily configured to perfectly match a wide variety of storage
needs, from small parts such as fasteners and connectors, to delicate measuring equipment,
cutting tools and electronic parts. STOR-LOC® small parts containers and grooved plastic
trays create custom layouts and drawer interiors to meet your specific needs.

Layout No. 7
(25 Compartments)
- 4 slotted partitions
- 12 divider plates 6U
- 8 divider plates 7U

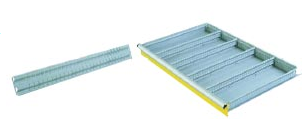

Slotted Partitions
Powder-coated steel partitions subdivide drawers from front-to-back or left-to-right. Each partition has slots which are 3/4” apart, to accept further subdivisions of drawers.

Grooved Plastic Trays
Available in three sizes and designed to protect side-sensitive tooling and plug gauges, Grooved Plastic Trays are excellent for storing drills, taps and reamers.

Layout No. 4
(20 Compartments)
- 4 slotted partitions
- 14 divider plates 6U
- 1 divider plate 8U

Layout No. 5
(12 Compartments)
- 2 slotted partitions
- 6 divider plates 10U
- 3 divider plates 12U


Drawer Liners
Anti-slip Drawer Liners provide cushioning and abrasion protection for drawer contents.

Steel Dividers
Powder-coated steel dividers further separate drawers when used
with slotted partitions. Dividers slide into slots of partitions or drawer
sidewalls to form compartments.
